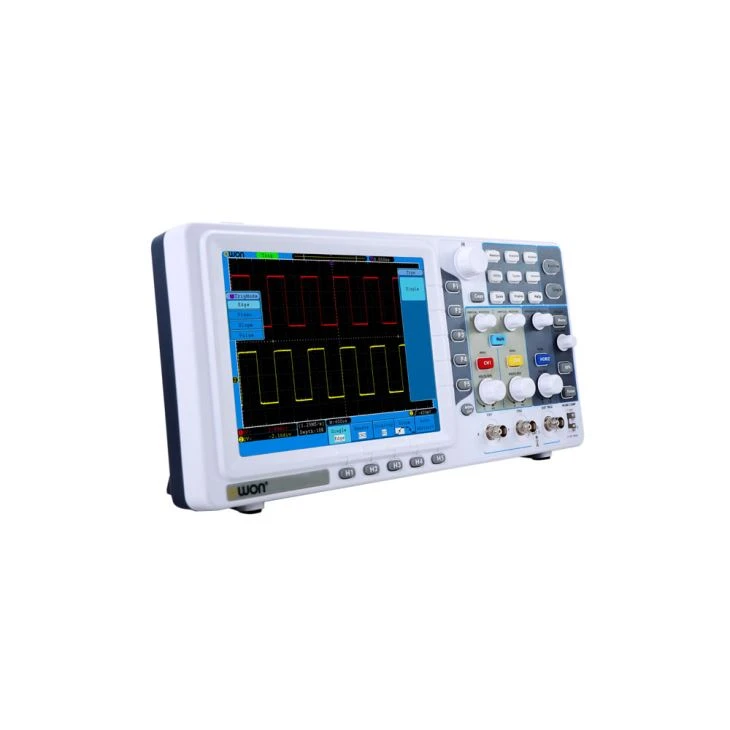

SDS-E Series Waveform Cov Ntaub Ntawv Digital Oscilloscope

- Bandwidth: 30MHz - 125MHz - Sample tus nqi: 500MS / s -1GS / s - Ultra-nyias lub cev - 8 nti siab daws teeb meem LCD - Poob / Kev ua haujlwm tsis zoo - SCPI, thiab LabVIEW txhawb zog - Cov kev lim dej thiab kev ntsuas tam sim no (excl. SDS5032E thiab SDS5052E)

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Tsis yog.	Channel	Bandwidth	Qauv Tus Ntaus	Recod Length
SDS5032E	2 + 1	30MHz	500MS / s	10K
SDS5052E	2 + 1	50 MHz	500MS / s	10K
SDS6062E	2 + 1	60 MHz	500MS / s	1M / yeem 10M
SDS7072E	2 + 1	70MHz	1GS / s	1M / yeem 10M
SDS7102E	2 + 1	100MHz	1GS / s	1M / yeem 10M
SDS7122E	2 + 1	125MHz	1GS / s	1M / yeem 10M

Waveform Daim ntawv / Ua si

SDS series waveform cov ntaub ntawv / ua haujlwm yug 2-channel waveform cov ntaub ntawv. Ntxiv mus, Pass / Fail waveform tseem tau sau tseg. 1000 tauj cov ntaub ntawv tuav. Txhawb waveform replay los analyzer cov lus qhia.

Qauv	SDS5032E	SDS5052E	SDS6062E	SDS7072E	SDE7102E	SDS7122E
Bandwidth	30MHz	50 MHz	60 MHz	70MHz	100MHz	125MHz
Tus nqi ua piv txwv (ntawm lub sijhawm)	500MS / s			1GS / s
Kab rov tav (S / div)	5ns / div ~ 100s / div, kauj ruam ntawm 1 ~ 2 ~ 5			2ns / div ~ 100s / div, kauj ruam ntawm 1 ~ 2 ~ 5
Channel	2 + 1 (sab nraud)
Zaub	8 "xim LCD, 800 × 600 pixels
Daim Ntawv Length	10K		1M	1M (yeem 10M)
Vertical Resolution (A / D)	8 khoom (2 zaug ib txhij)
Ntsug Sensitivity	5mV / div ~ 10V / div (ntawm input)		2mV / div ~ 10V / div (ntawm input)
Tsav Yam	Ntug, Pulse, Yees duab, Nqes hav, thiab Lwm Yam
Txhais hom	Nws pib, Li qub, thiab tib leeg
Waveform Lej	+, -, ×, ÷, invert, FFT
Kev Sib Txuas Kev Sib Txuas Lus	USB party, USB ntaus ntawv, Dhau los tsis ua, LAN, thiab VGA (yeem)
Roj teeb	tsis txaus siab
Dimension (W × H × D)	348 × 170 × 78 (hli)
Nyuj (tsis muaj pob)	1.50 kg
