SDS1000 Series Super Economical Yam Digital Oscilloscope
- 2-Channel
- Qauv tus nqi: 100MS / s -1GS / s
- Ultra-nyias lub cev
- 7 nti siab daws teeb meem LCD
- SCPI, thiab LabVIEW tau txais kev txhawb
Ntsuam xyuas los ntawm engineer
- Bandwidth: 20MHz - 100MHz
- 2-Channel
- Qauv tus nqi: 100MS / s -1GS / s
- Ultra-nyias lub cev
- 7 nti siab daws teeb meem LCD
- SCPI, thiab LabVIEW tau txais kev txhawb
| Tsis yog. | Channel | Bandwidth | Qauv Tus Ntaus | Daim Ntawv Length |
| SDS1022 | 2 + 1 | 20MHz | 100MS / s | 10K |
| SDS1102 | 2 + 1 | 100MHz | 1GS / s | 10K |
1. kos duab
7 '' LCD daws teeb meem ntau waveform detafulfilling zoo muag pom cov nyhuv.
2. Ntev & Pob
| Qauv | SDS1022 | SDS1102 | |
|---|---|---|---|
| Bandwidth | 20MHz | 100MHz | |
| Qauv Tus Ntaus | 100MS / s | 1GS / s | |
| Kab rov tav (S / div) | 5ns / div - 1000s / div, kauj ruam ntawm 1 - 2 - 5 | 2ns / div - 1000s / div, kauj ruam ntawm 1 - 2 - 5 | |
| Channel | 2 | ||
| Zaub | 7 "xim LCD, 800 x 480 pixels | ||
| Tswv yim Coupling | DC, AC, thiab GND | ||
| Vertical Resolution (A / D) | 8 khoom (2 raws ib txhij) | ||
| Ntsug Sensitivity | 5mV / div - 5V / div (ntawm input) | ||
| Tsav Yam | Ntug, Yees duab | ||
| Txhais hom | Nws pib, Li qub, thiab tib leeg | ||
| Waveform Lej | +, -, x, ÷, invert, FFT | ||
| Fuse | 2A, T hoob, 250V | ||
| Dimension (W x H x D) | 301 x 152 x 70 hli | ||
| Ntaus Phaus | 1.10 kg | ||
YUG
▶ PC software rau OWON SDS1000 DSO
▶ Neeg tsav tsheb USB rau txhua qhov OWON DSO thiab AWG
▶ SDS1000 Series DSO neeg siv phau ntawv
ACCESSORIES Cov khoom siv yuav raug xa tawm zaum kawg.
Lub hwj chim qaum |
CD Rom |
Daim Ntawv Ceev Qhia |

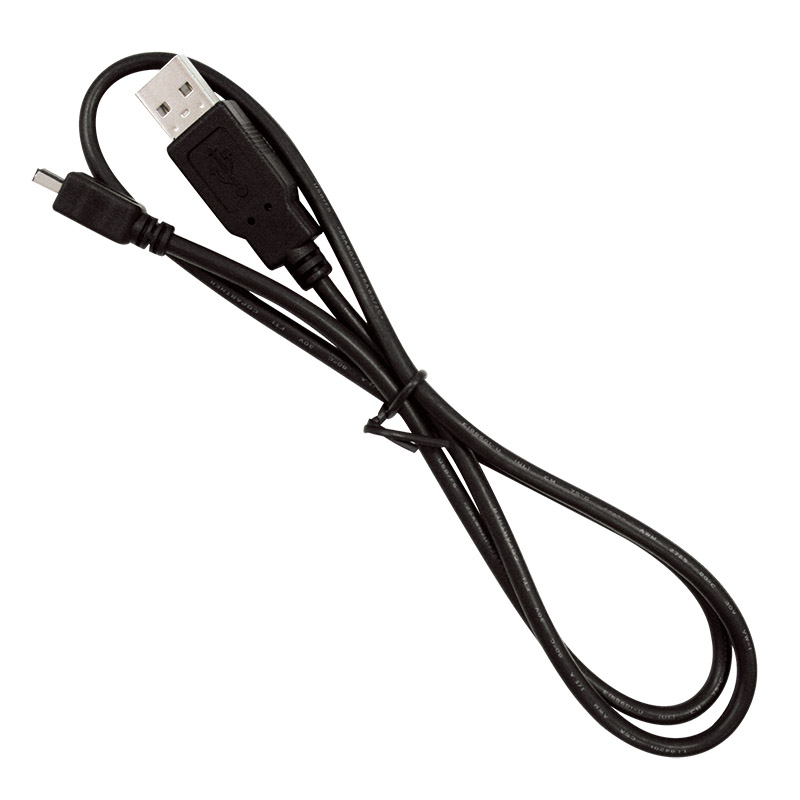

USB Cable |
Kev sojntsuam |

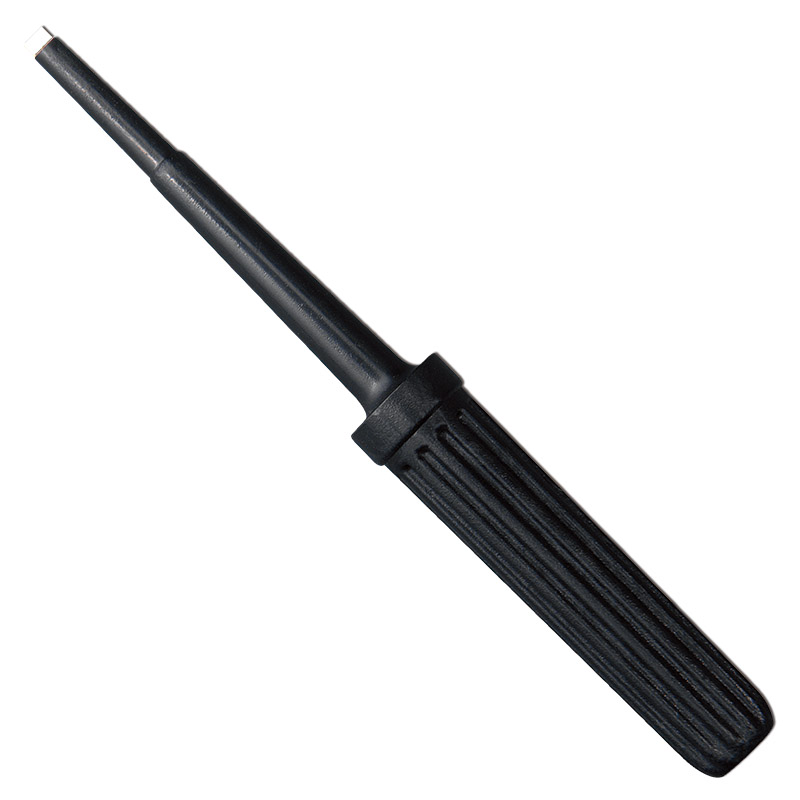

Sojntsuam Kho |
