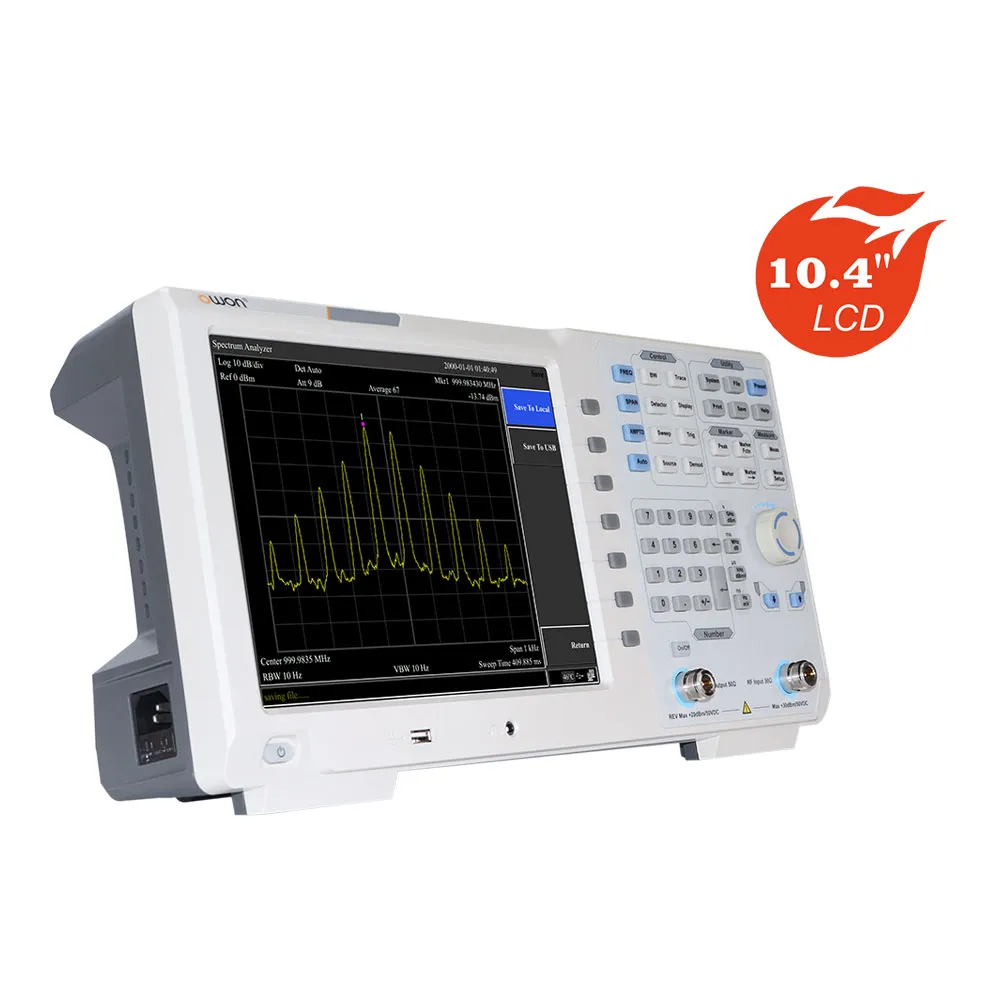

XSA1000P-TG Series Spectrum Analyzer
ntxiv rau -163 dBm Tso Tawm Nruab Nrab Noise Level (DANL)
ntxiv rau ntau yam interfaces: USB Host, USB Device, LAN, earphone interface, HDMI
ntxiv rau 10.4-inch multi-touch screen EMI lim thiab quasi-peak ntes khoom

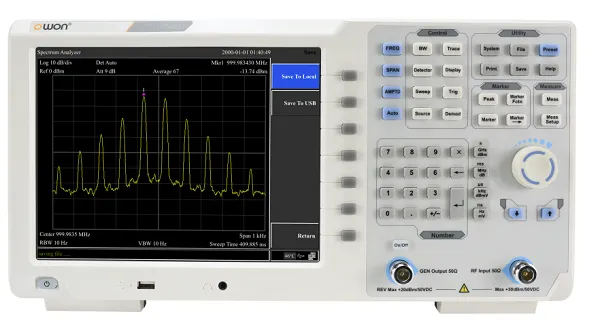

XSA1000P-TG Series Spectrum Analyzer
Ntxiv rau qhov ntau zaus 9kHz - 7.5GHz
ntxiv rau -163 dBm Tso Tawm Nruab Nrab Noise Level (DANL)
Ntxiv rau theem suab nrov -106 dBc/Hz @ 1GHz thiab offset ntawm 10 kHz
ntxiv rau tag nrho amplitude raug<0.7 dB
ntxiv rau 1 Hz yam tsawg kawg nkaus daws teeb meem bandwidth (RBW)
ntxiv rau EMI cov khoom kuaj ua ntej ua raws, xaiv tau EMC kuaj software
ntxiv rau dej tsaws tsag duab nraaj, hloov kho teeb liab zoo tsom xam, suab demodulation, ect. ntau qhov kev sim dav dav thiab txuas ntxiv ua haujlwm.
ntxiv rau tandard Pass/Fail ntawm qhov chaw kuaj thiab ceeb toom ua haujlwm
ntxiv rau siv tag nrho-digital intermediate zaus technology

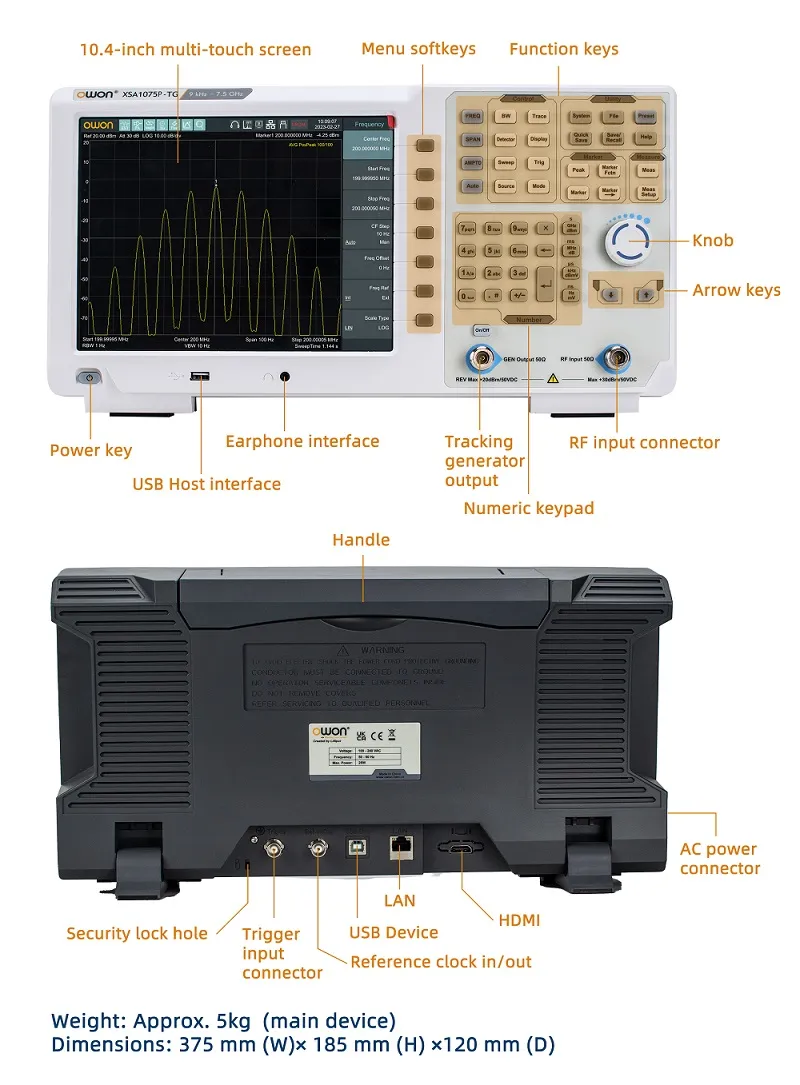

ntxiv rau ntau yam interfaces: USB Host, USB Device, LAN, earphone interface, HDMI
ntxiv rau 10.4-inch multi-touch screenEMI lim thiab quasi-peak ntes cov khoom siv
1.1Hz yam tsawg kawg nkaus daws teeb meem bandwidth (RBW), muaj txiaj ntsig sib txawv ntawm cov teeb liab nyob ze
2. Ceev ceev muaj nuj nqi
Lub tsheb rernote cov yuam sij, TPMS log tsheb siab modules thiab smll wireless modules feem ntau siv ASKFSK mnodulation.XSA800 tuaj yeem ua tiav qhov kev ntes ntawm ASK / FSK cov teeb liab, thiab ncaj qha tau txais nws qhov chaw zaus, lub zog thiab offset tsis.
3.Excellent me me teeb liab ntsuas peev xwm
-163 dBm DANL (Displayed Average Noise Level), tuaj yeem pom cov cim me me tsis muaj zog
4.Ntau qhov ntsuas suab nrov tsawg
Phase Noise < -106 dBc/Hz @ 1GHz ntawm 10 kHz offset
5.Pass/Fail ua haujlwm
Ceev nrooj txiav txim seb qhov kev xeem tau dhau los
6.Dej tsaws tsag daim duab
Saib tus cwj pwm ntawm qhov sib txawv ntawm cov teeb liab parametersover lub sij hawm, taug qab qhov zaus thiab lub hwj chim coj tus cwj pwm nyob rau lub sij hawm, tshwj xeeb tshaj yog cov teeb liab sib cuam tshuam.
Tus neeg siv tuaj yeem siv cov duab kos duab dej tsaws tsag los txheeb xyuas qhov ruaj khov ntawm lub teeb liab lub sijhawm, lossis txhawm rau txheeb xyuas cov teeb meem cuam tshuam cuam tshuam hauv kev sib txuas lus.
7.Muab EMC xeem muaj nuj nqi (yuav tsum tau xaiv software)
Ua-nyob rau hauv ntau tshaj 200 mainstream EMC xeem cov qauv thiab cov kev cai templates.Tus neeg siv xaiv tus coj tus qauv, thiab lub software yuav automaticaly teem lub spectrum analyzer thiab sau cov ntaub ntawv xeem.Cov ntaub ntawv thiab cov kev cai yuav muab piv rau tib lub tshuaj ntsuam.Cov neeg siv kuj yuav customize cov kev cai. rau kev sib piv.
8.Muab EMl ua ntej ua raws li kev xeem ua haujlwm
Nruab nrog EMl lim (6dB) thiab quasi-peak detector raws li tus qauv, nws yog qhov tseeb dua rau EMl kev kuaj ua ntej kuaj, thiab ua tiav kev sim thiab cov ntawv tshaj tawm tuaj yeem ua tiav los ntawm kev siv cov software txhawb nqa.
9.Muab ntau hom kev ua haujlwm txuas ntxiv
Standard modulation teeb liab zoo tsom xam, suab demodulation, teb lub zog ntsuas, charnel ntsuas thiab zaus txee, ect. ntau qhov kev sim dav dav thiab txuas ntxiv ua haujlwm.
modulation signal zoo tsom xam
suab demodulation
kev ntsuas channel
zaus counter
Txij li thaum xyoo 1990, Lilliput nkag mus rau hauv kev lag luam khoom siv hluav taws xob, nws cov khoom thib 1 yog mini xim LCD.
Muaj los ntawm Lilliput, OWON SmartTest cov khoom lag luam tau tsim los rau "Ua raws li koj cov kev xav tau" hauv cov khoom siv ntsuas thiab ntsuas.
Los ntawm 2 xyoo caum kev siv zog, Lilliput maj mam loj hlob los ua ib pab pawg neeg koom nrog, npog 3 cov khoom lag luam - mini xim LCD, cov khoom siv ntsuas thiab ntsuas, thiab kev tswj hwm lub zog hauv tsev.
OWON cov khoom tuaj yeem pom hauv Asia, North America, Europe, South America, Oceania, thiab Africa, nrog rau cov neeg koom tes thoob ntiaj teb tsim nyob rau hauv ntau tshaj 80 lub teb chaws / cheeb tsam.
Lilliput (OWON) tsis muaj kev siv zog los ua ib qho ntawm cov khoom siv ntsuas saum toj kawg nkaus thiab cov cuab yeej ntsuas cov khoom lag luam hauv ntiaj teb.
| Zaus Specification | ||
|---|---|---|
| Qauv | XSA 1015 TG | XSA 1036 TG |
| Ntau zaus | ||
| Ntau yam | 9 kHz -1.5 GHz | 9 kHz - 3.6 GHz |
| Kev daws teeb meem | 1 Hz | |
| Ntau zaus | ||
| Ntau yam | 0 Hz, 100 Hz mus rau qhov siab tshaj plaws ntawm cov khoom siv | |
| Qhov tseeb | ± ncua / (swept ntsiab lus -1) | |
| Internal reference | ||
| Kev siv zaus | 10. 000000 MHz | |
| Kub stability | <2.5ppm （15℃ to 35℃） | |
| Kev laus tus nqi | <1ppm/year | |
| Bandwidth | ||
| Kev daws teeb meem bandwidth (-3 dB) | 10Hz txog 500kHz (hauv 1 txog 10 ib ntus), 1MHz, 3MHz | |
| Video bandwidth (-3 dB) | 10Hz txog 3MHz | |
| Amplitude Specification | |
|---|---|
| Tso tawm suab nrov nruab nrab (DANL) | |
| Input attenuation 0 dB, 1Hz daws teeb meem bandwidth | |
| Preamp tawm | 1 MHz ~ 10 MHz -130dBm (nominated) |
| 10 MHz ~ 1GHz -130dBm (nominated) | |
| 1GHz ~ 1.5 GHz -128 dBm (nominated) | |
| Preamp rau | 1 MHz ~ 10 MHz -150dBm (nominated) |
| 10 MHz ~ 1GHz -150dBm (nominated) | |
| 1GHz ~ 1.5 GHz -148 dBm (nominated) | |
| Phase suab nrov | |
| 20 degree ~ 30 degree, fc =1 GHz | |
| Phase suab nrov | <-85 dBc/Hz @10 kHz offset |
| <-100 dBc/Hz @100 kHz offset | |
| <-110 dBc/Hz @1 MHz offset | |
| Qib zaub ntau yam | |
| Log scale coordinate | 1dB ~ 255dB |
| Linear scale coordinate | 0 mus rau qib siv |
| qib unit | dBm, dBuW, dBpW, dBmV, dBuV, W, V |
| Cov ntsiab lus | 201~1001 |
| Tus naj npawb ntawm kab | 5 |
| Cov neeg ntes | Positive-peak, negative-peak, qauv, ib txwm, RMS |
| Khiav haujlwm | Clear sau, Max Hold, Min Hold, Saib, Blank, Nruab Nrab |
| Qhov tseeb | |
| Input Attenuation Switching Uncertainty | 20 degree ~ 30 degree, fc=50 MHz, Preamplifier Off, 20dB RF attenuation, input teeb liab 0 ~ 39 dB ± 0.5 dB |
| Tsis paub meej Amplitude | 20 degree ~ 30 degree, fc=50 MHz, RBW=1 kHz, VBW=1 kHz, ncov siab, 20 dB RF attenuation, Preamplifier Off ±{0}}.4 dB, tawm tswv yim teeb liab=-20dBm Preamplifier On ±0.5 dB, input signal= -40dBm |
| Tsis paub meej | input signal range 0dbm~-50dbm |
| ± 1.5 dB | |
| VSWR | input 10 dB RF attenuation, 1 MHz ~ 1.5GHz |
| <1.5,nominal | |
| Tracking generator | |
| Tso zis ntau zaus | 100 kHz ~ 1.5 GHz |
| Output zog theem ntau | {0}} dBm ~ 0 dBm , |
| Tso zis zog theem daws teeb meem | 1 IB |
| Tso zis flatness | ntxiv /-3 dB |
| Qhov siab tshaj plaws kev nyab xeeb rov qab theem | Qhov nruab nrab tag nrho lub zog: 30 dBm, DC: ± 50 VDC |
| Inputs thiab Outputs | |
| Pem hauv ntej vaj huam sib luag RF input connector | 50 Ω, N-hom poj niam |
| Pem hauv ntej vaj huam sib luag khiav generator tso zis | 50 Ω, N-hom poj niam |
| 10M siv tswv yim | 50 Ω, N-hom poj niam |
| Kev sib txuas lus chaw nres nkoj | USB Host, USB Device, LAN, earphone chaw nres nkoj, thiab VGA |
| General techincal specification | |
| Zaub | TFT LCD, 10.4 nti |
| Qhov hnyav | 5. 0 kg |
| Qhov Loj (W x H x D) | 321 x 221 x 115 hli |
