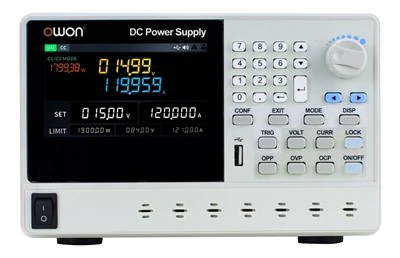

OWH6522 60V/120A Programmable DC Fais Fab
+ 3000W dav- tso zis ntau yam (60V / 120A) nrog rau qhov tseeb txog li 0.05%.
+ 10mV/1mA teeb tsa thiab rov qab daws teeb meem.
+ Xaiv tau CV / CC hom tseem ceeb rau kev thauj khoom sib txawv.
+ Txhawb nqa mus txog 100-kauj ruam LIST kev ua haujlwm thiab tswj PC.
+ Ua-hauv P-V nkhaus simulation kom raug simulate hnub ci vaj huam sib luag I-V yam ntxwv.
+ Kev tswj hwm digital tag nrho nrog kev tiv thaiv OVP, OCP, thiab OPP.
+ Txheem USB CDC, RS485, thiab Ethernet interfaces; SCPI tau tshaj.
+ 3.9-inch TFT xim zaub rau tiag tiag-lub sijhawm saib cov dynamic waveforms thiab cov ntsuas ntsuas.
Specifications
Cov cuab yeej yuav tsum tau ua haujlwm tsis tu ncua rau ntau tshaj 30 feeb ntawm qhov ntsuas kub ua haujlwm kom ua tiav cov lus qhia hauv qab no
|
Qauv |
TIAB SA 6522 |
|
|
Channel |
1 |
|
|
Rated tso zis (0℃-40 degree) |
Qhov hluav taws xob |
0 - 60V |
|
Tam sim no |
0 - 120A |
|
|
Hwj chim |
3000W |
|
|
Input zog |
100V-240VAC*145Hz-65Hz |
|
|
Kev cai thauj khoom*2 |
CV |
Tsawg dua lossis sib npaug li 30mV |
|
CC |
Tsawg dua lossis sib npaug li 60mA |
|
|
Input zog tswj |
CV |
Tsawg dua lossis sib npaug li 30mV |
|
CC |
Tsawg dua lossis sib npaug li 60mA |
|
|
Kev daws teeb meem |
10mV / 1mA |
|
|
Readback daws teeb meem |
10mV / 1mA |
|
|
Kev teeb tsa raug |
Qhov hluav taws xob |
Tsawg dua lossis sib npaug li 0.05% ± 30mV |
|
Tam sim no |
Tsawg dua lossis sib npaug li 0.1% ± 120mA |
|
|
Readback raug |
Qhov hluav taws xob |
Tsawg dua lossis sib npaug li 0.05% ± 30mV |
|
Tam sim no |
Tsawg dua lossis sib npaug li 0.1% ± 120mA |
|
|
Ripple suab nrov |
Qhov hluav taws xob |
Tsawg dua lossis sib npaug li 80mVp-p |
|
Tam sim no |
Tsawg dua lossis sib npaug li 120mArms |
|
|
Cov zis temp drift coefficient (0℃-40 degree) |
100ppm /℃(Voltage); 200ppm /℃(Tam sim no) |
|
|
Readback temp drift |
100ppm /℃(Voltage); 200ppm /℃(Tam sim no) |
|
|
Transient teb (10% -90% rated load) |
Tsawg dua lossis sib npaug li 5.0ms |
|
|
Ua haujlwm kub |
0-40 degree |
|
|
Zaub |
3.9-nti TFT LCD npo |
|
|
Interface |
USB, LAN, RS485 |
|
|
Qhov Loj (W * H * D mm) |
428mm * 88.0mm * 446mm |
|
|
Qhov hnyav (kg) |
Kwv yees li . 13kg |
|
* 1: Cov zis hluav taws xob yog derated ntawm tsawg input voltage. Max input tam sim no Tsawg dua lossis sib npaug rau 16 A.
* 2: Qhov ntsuas pom ntawm qhov ntsuas no yog qhov ntsuas hluav taws xob them nqi hluav taws xob.
